Camera Keyframes

5.1 expanded camera presets from single-waypoint snapshots into full keyframed sequences — a timeline of camera positions with per-segment easing, played back as a smooth animated camera move.

The legacy single-waypoint presets still work; nothing changes for them.

Preset shapes

There are two preset shapes now:

• Legacy waypoint — a single { x, y, scale }. Applies instantly when triggered (with the existing camera-smoothing easing).
• Keyframed sequence — an array of keyframes, each with { time, x, y, scale, easing }. Plays back as a tween through the keyframes in time order.

Both shapes coexist in the same preset list per scene.

Editor

Open the Director (toolbar button on the scene controls). Switch to the Presets tab.

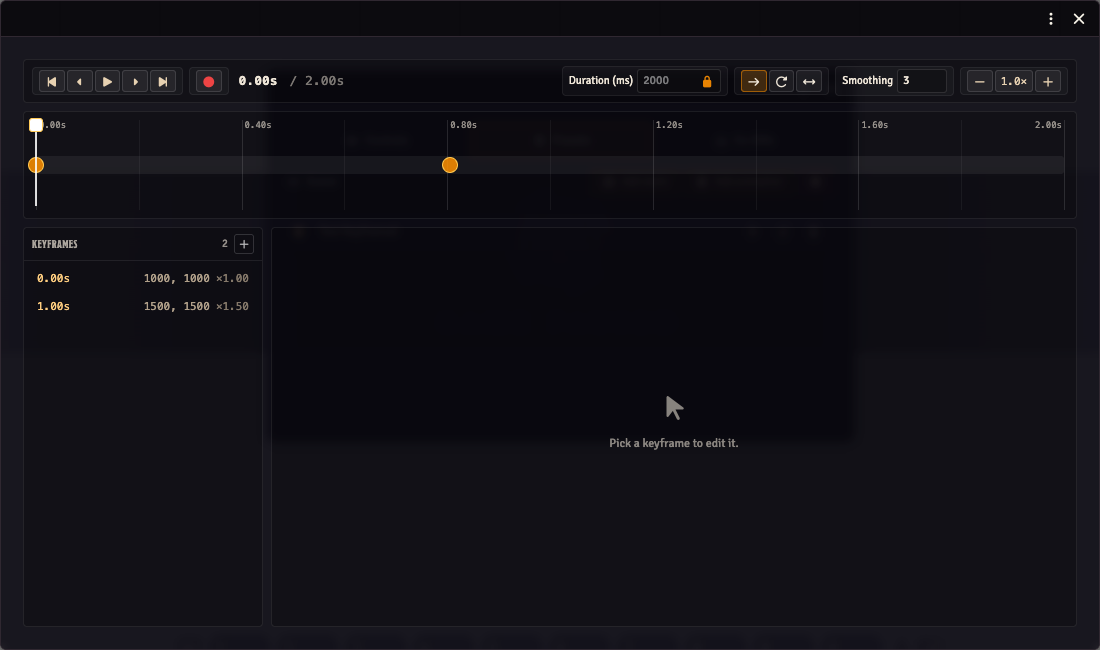

Each animation-preset row has a pen-to-square (edit) icon on the right. Clicking it opens the keyframe editor in a separate ApplicationV2 window (obs-utils-animation-preset, 880×520).

Adding keyframes

When the editor is expanded on a keyframed preset:

• The timeline strip across the top shows the duration scale and the keyframes as draggable dots.
• The playhead is a vertical line; click on the timeline to move it.
• + Add keyframe at playhead captures the current canvas viewport at the playhead's time. Pan the canvas to where you want the camera to be at that point, then click the button.

Editing a keyframe

Click a marker to select it. The detail panel below the timeline shows:

• Time (ms) — drag the marker on the timeline or edit the input.
• X / Y / Scale — the camera position at this keyframe.
• Easing — the curve used to interpolate FROM the previous keyframe TO this one. Options: linear, easeIn/Out/InOut, power1/2/3 in/out/inOut, sine variants, back variants.
• Capture from viewport — replace this keyframe's x/y/scale with whatever the current canvas viewport is.
• Delete keyframe — remove the selected keyframe. The first and last keyframes can't be removed (they bookend the sequence).

Loop mode

The loop dropdown at the top of the panel:

• None — plays once, stops at the last frame
• Restart — loops back to the first keyframe and replays
• Ping-pong — reverses direction each cycle

Playback controls

• ▶ Play — runs the sequence, animating the canvas viewport along the timeline. The playhead follows.
• ⏹ Stop — halts playback and disposes the timeline.

Runtime

The sequence runtime uses GSAP (provided by Foundry's global). Each segment between consecutive keyframes becomes a gsap.to call on a viewport proxy; the onUpdate callback feeds the interpolated position into the canvas via the existing camera-smoothing infrastructure.

Custom cubic-bezier easings are supported via a built-in cubic-bezier evaluator (no CustomEase plugin dependency).

Programmatic playback

There are two API methods for preset playback, with different scopes:

• playPreset(preset) (void) — the broadcast path. Claims active-GM control, switches both tracking-mode slots to cloneDM, pauses the DM's outgoing viewport stream, and broadcasts the preset to every OBS client. Use this when you want the production camera to move.
• previewPreset(preset) (SequenceController) — local-only, no side effects. Animates the GM's own canvas without touching tracking state or broadcasting anything. Returns a controller with pause(), resume(), scrub(ms), and stop(). Use this when auditioning a sequence in the editor.

const api = game.modules.get('obs-utils').api;

// Broadcast to OBS — no return value
api.playPreset(preset);

// Preview locally — full controller
const controller = api.previewPreset(preset);
controller.pause();
controller.scrub(1500);
controller.resume();
controller.stop();

For legacy single-waypoint presets, both methods short-circuit to the existing clampAndApplyExternal path; previewPreset returns a no-op controller in that case.

Keyboard shortcuts

These shortcuts apply inside the keyframe editor window (opened via the pen-to-square icon on an animation preset row).

Playback

Input	Action
Click ▶ Play	Play from the current playhead position.
Ctrl/Cmd+click ▶ Play	Play from the start of the sequence regardless of playhead position.

Timeline navigation

Input	Action
Click on the timeline strip	Move the playhead to that position.
Ctrl/Cmd+drag on the timeline strip	Draw a time-range lasso. All keyframes whose time falls inside the range are selected when you release.
Click prev/next keyframe button	Jump to the immediately previous or next keyframe.
Ctrl/Cmd+click prev keyframe button	Jump to the very first keyframe.
Ctrl/Cmd+click next keyframe button	Jump to the very last keyframe.
Ctrl/Cmd+click a keyframe dot on the timeline	Select that keyframe and pull the playhead to its time — handy for "go here, then play".
Ctrl/Cmd+click a stacked-keyframe badge	Cycle selection through the stacked keyframes (same as a plain click) and pull the playhead to the newly selected keyframe's time.
Ctrl/Cmd+scroll wheel	Zoom the timeline in or out.

Keyframe list (sidebar)

Input	Action
Click a row	Select that keyframe (clears any existing multi-selection).
Ctrl/Cmd+click a row	Toggle that keyframe in or out of the multi-selection.

Nudging selected keyframes

When one or more keyframes are selected, you can nudge them in time with the arrow keys. The step size depends on the modifier held:

Keys	Step
← / →	1 ms
Ctrl/Cmd+← / →	10 ms
Shift+← / →	100 ms

Deleting keyframes

Keys	Action
Backspace	Delete the selected keyframe(s).

Note: the Delete key is captured by Foundry's canvas layer for deleting tokens; use Backspace inside this editor.
